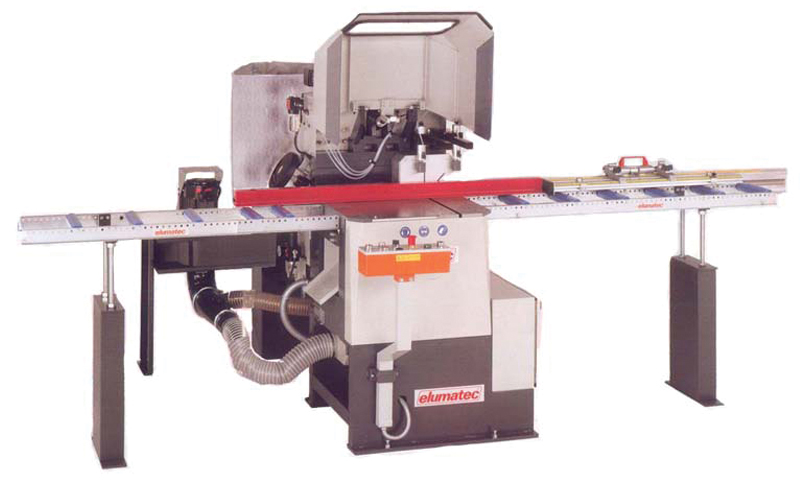

MGS 500 SA

Featuring the tried and tested principle of cutting from below the machine table, this machine is the idea solution for a wide range of aluminium cutting applications, from large volume environments, to smaller custom fabricating type of applications. Operating with a 500mm (20”) diameter saw blade, combined with the powerful 4kW standard motor this machine offers a large cutting range, and pivot mitre cutting up to 45 degrees. The standard machine is equipped with two hand safety controls, and an inter-locked machine hood that completely encloses the saw during the cutting cycle providing a very safe working environment. Clamping of the material is achieved through adjustable vertical pneumatic clamps, and optional horizontal clamps. It is also standard equipped with ports for the addition of an optional chip extraction unit.

Click image to enlarge

Capacity:
circle4.75" (120mm)
square4.75" x 4.75" (120mm x 120mm)
rectangle 4.75" x 6.25" (120mm x 160mm)
