SBZ 151
Profile Machining Centre

The SBZ 151 is a 5 axis aluminium profile machining centre. Machining processes may be carried out from all 6 sides of the profile (including the bottom) without rotation, or moving the work piece using the optional angle head. The travelling tool magazine minimises cycle time, and may be equipped with 13 standard tools, and 7 special tools (angle heads, saw blade, special cutters, etc). An additional magazine for a 500mm diameter saw blade is also available. Direct drives, and robust construction of all axis provides positioning accuracy of +/-0.10mm(.004”) and +/-0.10 degrees on the angular axis.

Technical Data:

Optional Accessories:

➢ Angle router head for processing from below
➢ Independent clamp adjustment
➢ Automatic length measuring
➢ Chip removal conveyor
➢ Barcode scanner

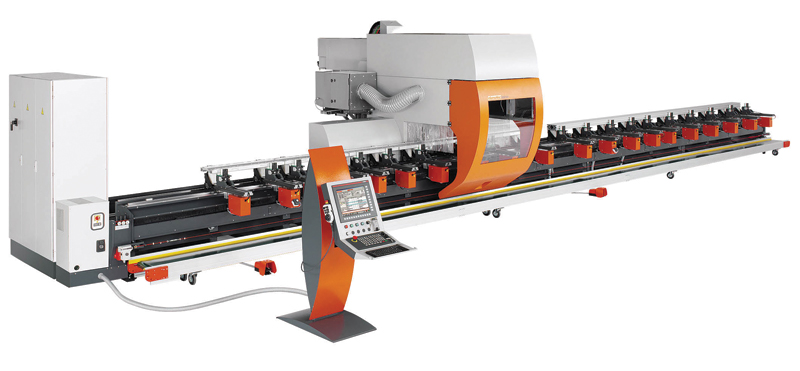

Click image to enlarge

X-axis travel: 6000mm, 7300mm, 9000mm, 10300mm, 12000mm (longer on demand)
Y-axis travel: 1150mm
Z-axis travel: 650mm
Pivoting Angles A-axis (with 400mm sawblade): +/-110 degrees freely programmable in 1/10 degree steps
Pivoting Angles C-axis: +/-180 degrees freely programmable in 1/10 degree steps
Spindle Speed: 24,000RPM max
Tool Changer Right Side: 20 tool places
Tool Changer Left Side: 1 place for 500mm diameter saw blade
