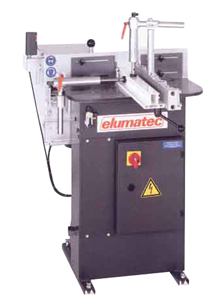

AF 221
End Milling Machine

The AF 221 is manual end milling machine for aluminium profiles. The milling unit is fed manually through the material via an ergonomically designed feed handle with integrated ON/OFF trigger. The machine is standard equipped with the “Spindle Lock” fast tool change system. The integrated machine base contains exhaust hose for connection to a dust extraction system. Also standard is the easy to adjust safety guard, which can be adjusted to suit almost any extrusion shape.

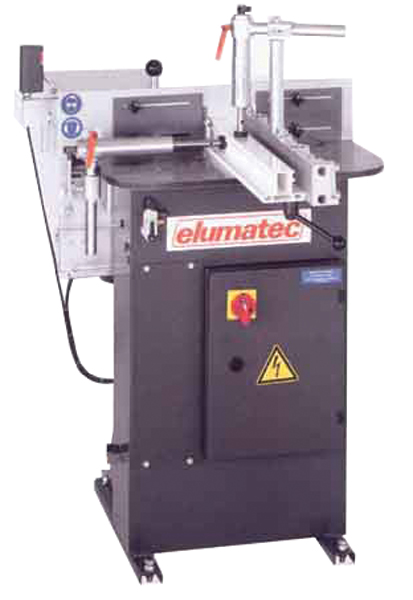

Click image to enlarge

Cutter Diameter: 250mm Max
Spindle Speed: 2800 RPM
Feed Type: Manual
Routing Capacity H: 100mm
Routing Capacity D: 90mm
Routing Capacity L: 250mm
Stroke: 350mm
Material Clamping: Pneumatic
