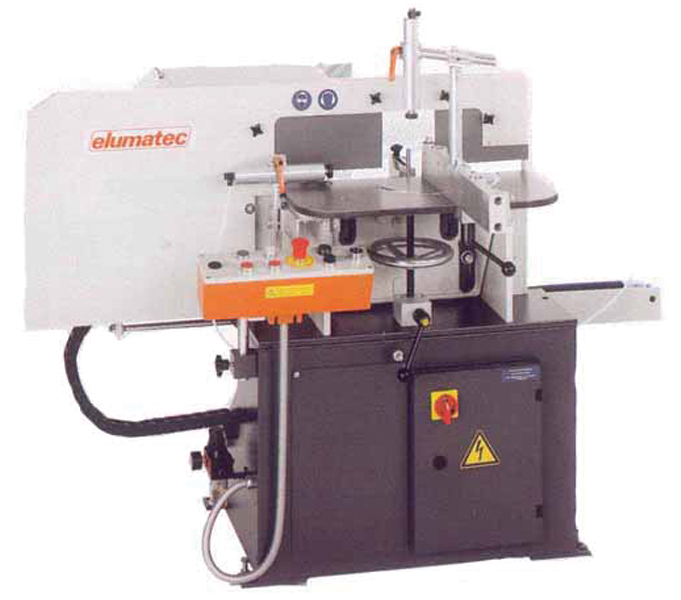

AF 222
End Milling Machine

The AF 222 is a manual end milling machine for aluminium profiles. The milling unit is fed manually through the material via an ergonomically designed feed handle with integrated ON/OFF trigger. The material work table can be adjusted up and down using the manual hand wheel. The material back fence can be swivelled left and right up to 60 degrees. Tools up to 280mm diameter may be used, thanks to its powerful 4.5kW motor. The work table provides a generous working area capable of handling material up to 400mm wide. The machine is also standard equipped with a pulse coolant system.



Click image to enlarge

Cutter Diameter: 280mm Max
Spindle Speed: 2800 RPM
Feed Type: Manual
Routing Capacity H: 150mm
Routing Capacity D: 110mm
Routing Capacity L: 400mm
Stroke: 550mm
Material Clamping: Pneumatic
